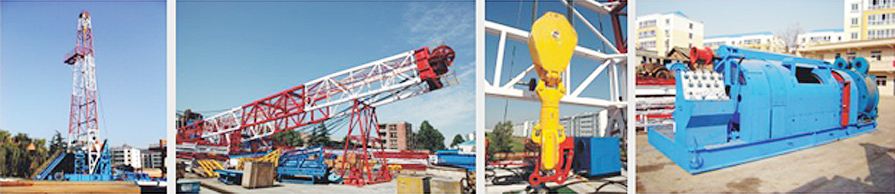

a. Land Rig Package with nominal drilling depth from 1000m to 7000m (100T – 500T Hook Load)
With the deep background of both Petrochina BOMCO and National Oilwell Varco, Sunrise designs and develops a variety of drilling rigs ranging from 100 tons to 500 tons in hook load. RT-ZJ series drilling rigs developed by Sunrise can be either mechanically diesel engine drive by means of chain/belt compound, or electrical drive by means of SCR(DC) or VFD(AC); it can be even also a combination of both electrical and mechanical to lower down the total capital equipment cost.
Sunrise RT-ZJ series drilling rig features in rigid and robust design and reliable quality. Safety of all the people directly or potentially involved is always the first crucial factor in our consideration. Meanwhile convenient operation/maintenance is also the key target we try to secure. All the RT-ZJ series rigs are designed and manufactured strictly in compliance with international top industrial spec and usual practice thus consequently benefit our clients with safety, convenience, reliability and high efficiency.
RT-ZJ SERIES DRILLING RIG TECHNICAL SPECIFICATION
|
Drilling Rig Series
|
Unit
|
RT-ZJ15
|
RT-ZJ20
|
RT-ZJ30
|
RT-ZJ40
|
RT-ZJ50
|
RT-ZJ70
|
|
钻机系列
|
|
Nominal Drilling Depth (4-1/2” DP)
|
m
|
800 - 1500
|
1200 - 2000
|
1600 - 3000
|
2500 - 4000
|
3500 - 5000
|
4500 - 7000
|
|
名义钻深
|
|
Max. Hookload
|
UST
|
100
|
150
|
200
|
250
|
350
|
500
|
|
最大钩载
|
|
Hook Speed
|
m/s
|
0 – 1.1
|
0 – 1.2
|
0 -1.1
|
0 – 1.48
|
0 – 1.44
|
0 – 1.44
|
|
大钩速度
|
|
Drawwork Power Rating
|
HP
|
350 - 450
|
450 - 550
|
550 - 750
|
1000
|
1500
|
2000
|
|
绞车额定功率
|
|
Hoisting String
|
line
|
8
|
8
|
8月10日
|
8月10日
|
10月12日
|
10 – 12
|
|
游吊系统绳系
|
|
Drill Line Size
|
In
|
1
|
2001-1-8
|
2001-1-4
|
2001-1-4
|
2001-3-8
|
2001-1-2
|
|
钻井绳
|
|
Max. Pull of Fast Line
|
UST
|
140
|
215
|
225
|
300
|
377
|
525
|
|
最大快绳拉力
|
|
Min. Power Rating for Each Mud Pump
|
HP
|
500
|
800
|
1000
|
1000
|
1300
|
1600
|
|
单泵最小功率
|
|
Rotary Opening
|
in
|
15, 17-1/2
|
17-1/2, 20-1/2,27-1/2
|
27-1/2, 37-1/2
|
|
转盘开口尺寸
|
|
Rig Floor Height
|
m
|
4.5
|
5, 6, 7.5
|
7.5, 9, 10.5, 12
|
|
钻台面高度
|
|
Mast Accommodation
|
l All these rigs can be designed to accommodate triple stand (28m) 所有井架均可设计为三立根井架
|
|
井架设计
|
l Dual stand (19m) can also designed for RTZJ15/20 2000米以内钻机也可设计为双立根井架
|

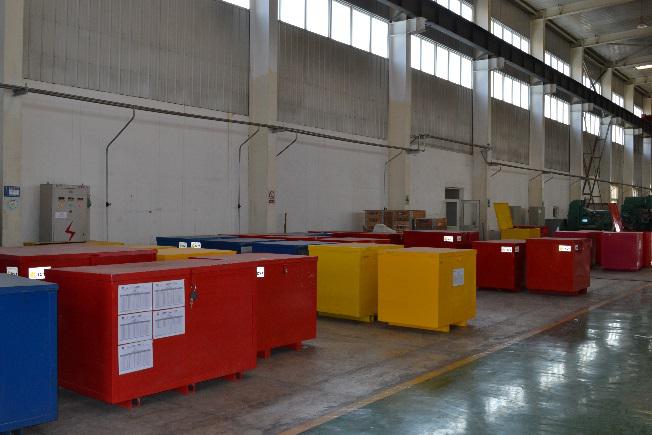

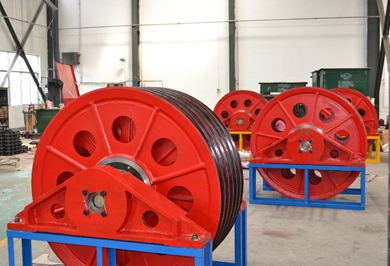

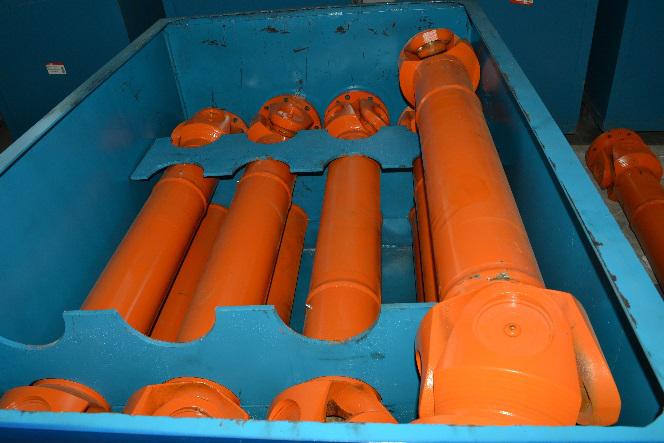

b. Rig Equipment and Spares
Sunrise produce the following drilling equipment as well as their spare parts. These equipment are compatible and interchangeable with most of the Chinese made drilling rigs working worldwide.
